EM30 Frequency Inverter | 0.4KW - 11KW / 0.5HP - 15HP

The EM30 frequency inverter delivers high-tech motor control in a compact, OEM-friendly package, ideal for industrial, civil, and retrofit applications.

Key Features

• High-tech motor control concept, based on advanced DSP technology – V/Hz, SENSORLESS VECTOR with SPEED/TORQUE control, sensorless PMM synchronous motor control
• Intelligent AUTOTUNING functions for easy set-up
• Ready for all common field bus systems. MODBUS RS-485 and CANbus ready
• Numerous standard inverter functions, suitable for a variety of industrial, civil, and retrofit applications. Universal parameter set, integrated PID controller routines, automatic carrier frequency and V/Hz curve adjustment for advanced torque control
• C3 class EMC filter built in, optional kit for internal C1 class filter available
• Eura DV Software for inverter control, parametrization and troubleshooting. Parameter COPY stick
• Approved for worldwide standards by independent bodies
• Rugged construction, all metal enclosure, thermally decoupled from motor, IP66/NEMA 4X, shock proof (4G) – for motor and wall mounting
• Flexible configurable 4 line character LCD display

Applications:

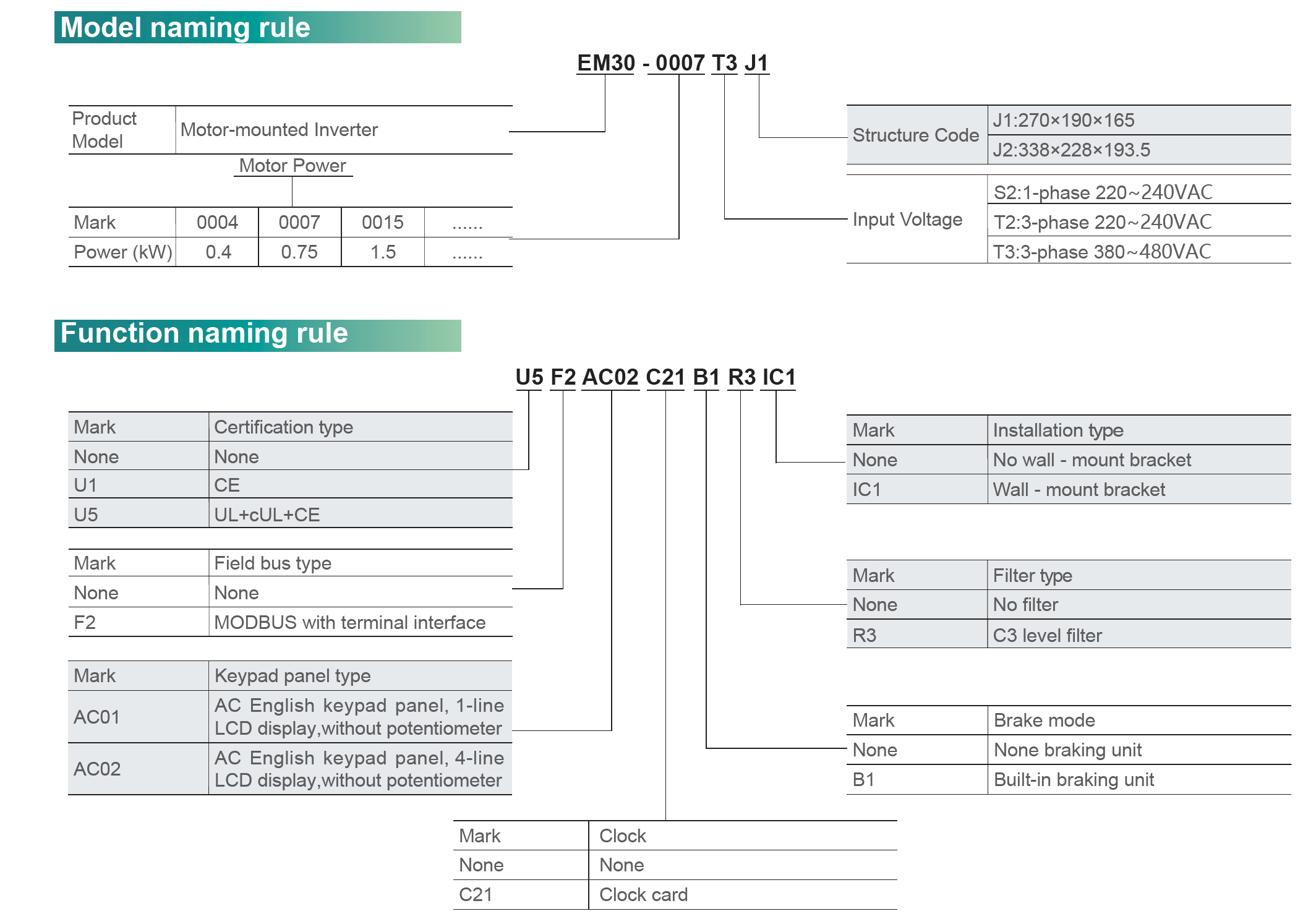

Model Code & Options Code Designations:
